【ハード】 Gigabyteから1ボードPCの『GA-SBCAP3350』が登場

ハードウェア全般



(Source:Gigabyte GA-SBCAP3350)

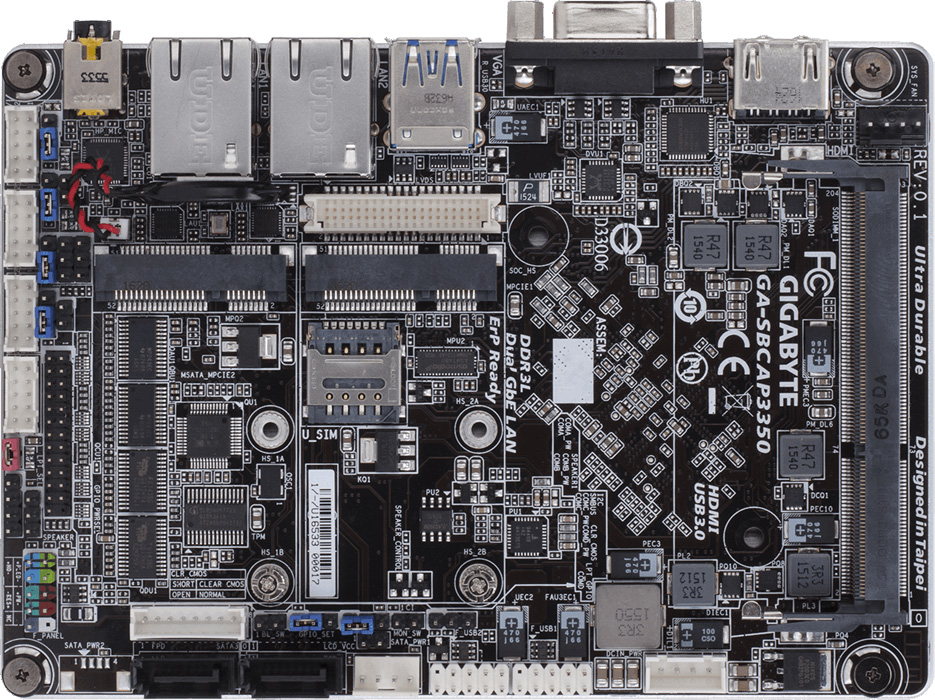

Gigabyteは1ボードPCの『GA-SBCAP3350』を発表しました。パッと見はRaspberry Pi系かと思いきや、CPUには4コアのCeleron N3350が採用されており普通のWindows 10 64bitが動作します。(Raspberry Pi2 ~ 3はWindows 10 IoT Core)

使用には別途メモリとストレージを取り付ける必要があり、ボードサイズは146x 102mm、発売日とお値段はまだ明らかになっていません。

以下、カタログスペックになります。



[ Specifications ]

CPU:
 ・Built in with an Intel Quad-Core Celeron N3350 SoC (1.6 GHz)
 ・2MB Cache

Memory:
 ・DDR3L SO-DIMM sockets supporting up to 8 GB of system memory
 ・Support for DDR3L 1866/1600/1333 MHz memory module

Onboard Graphics:
 ・D-Sub port, supporting a maximum resolution of 1920×1200@60Hz
 ・HDMI port, supporting a maximum resolution of 3840×2160@30Hz
 ・Maximum shared memory of 512MB

Audio:
 ・Realtek ALC255 codec
 ・High Definition Audio
 ・2-channel

LAN:
 ・RealtekGbE LAN chips (10/100/1000 Mbit) x2

Expansion Slots:
 ・Half size Mini PCIe slot (MPCIE1)
 ・(The Mini PCIe slot conforms to PCI Express 2.0 standard.)

Storage Interface:
 ・SATA 6Gb/s connectors x2
 ・MSATA connector (MSATA_MPCIE2)

USB:
 ・USB 3.1 Gen 1 ports on the back panel x2
 ・USB 2.0/1.1 ports available through the internal USB headers x4

Internal I/O Connectors:
 ・DC-In power connector
 ・System fan header
 ・SATA 6Gb/s connectors x2 and SATA power connectors x2
 ・Front panel header
 ・Battery cable header
 ・USB 2.0/1.1 headers x2
 ・Serial port headers x4 and Serial port power select jumpers x4
 ・Speaker header
 ・GPIO power selection jumper and GPIO status configuration jumper
 ・LVDS header and LVDS drive voltage jumper
 ・Flat panel display header and Flat panel display switch header
 ・Backlight switch header
 ・Volume control header
 ・Buzzer header
 ・LPT/GPIO header and LPT configuration jumper
 ・I2C
 ・SMBUS
 ・BIOS Select jumper
 ・Clear CMOS jumper
 ・Chassis intrusion header

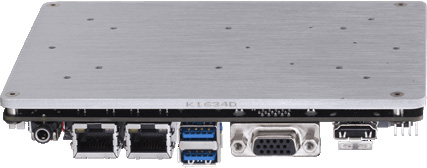

Back Panel Connectors:
 ・HDMI port
 ・D-Sub port
 ・USB 3.1 Gen 1 ports x2
 ・RJ-45 ports x2
 ・Audio jack (headphone and microphone combo jack)

I/O Controller:
 ・iTE I/O Controller Chip

H/W Monitoring:
 ・Voltage detection
 ・Temperature detection
 ・Fan speed detection
 ・Fan speed control

    * Whether the fan speed control function is supported will depend on the cooler you install.

BIOS:
 ・64Mbit flash x2
 ・Use of licensed AMI UEFI BIOS
 ・Support for DualBIOS
 ・PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features:
 ・Xpress Install
 ・@BIOS
 ・APP Center

    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Bundle Software:
 ・Norton Internet Security (OEM version)

Operating System:
 ・Support for Windows 10 64-bit

Form Factor:
 ・SBC Form Factor; 14.6cm x 10.2cm
